名稱： 光纖輸出太陽光模擬器
型號： A1/A4/AX/CX
品牌： 努美科技/Sciencetech
1.概述
Solar LightLine系列光纖太陽光模擬器是太陽光模擬器行業的一場革命。借助Solar LightLine，您可以使用標準的4英尺光纖將AAA級太陽光導向任何您想要的地方。太陽光模擬器的經典設計要求您將樣品帶到太陽光模擬器?，F(xiàn)在，您可以將太陽光模擬器帶到您的樣品中。
Solar LightLine模擬器標配觸摸屏電源，集成的快門和曝光控制器。多種過濾器選項可滿足您的特定需求。

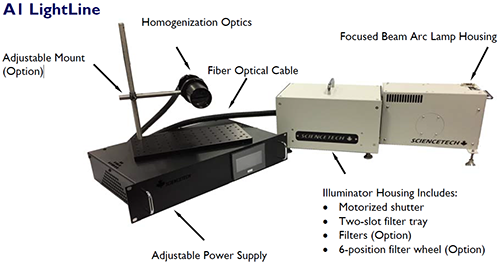

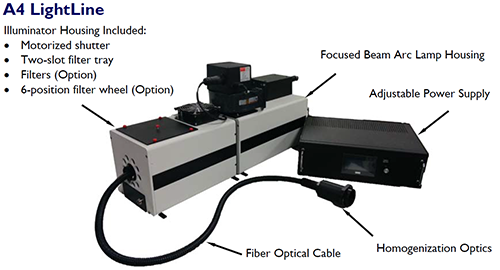

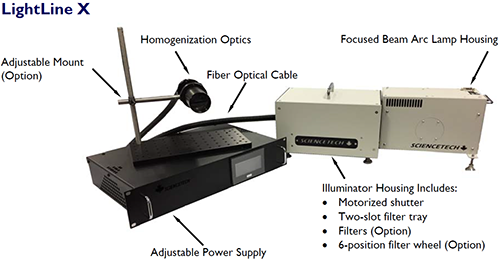

Solar LightLine具有四個基本型號（A1-300W，A4- 1000W，AX-300W和CX-300W）。每個模型都有多個配置選項?，F(xiàn)有AAA級照明的配置選項，**50mm見方，強度高達12Suns。

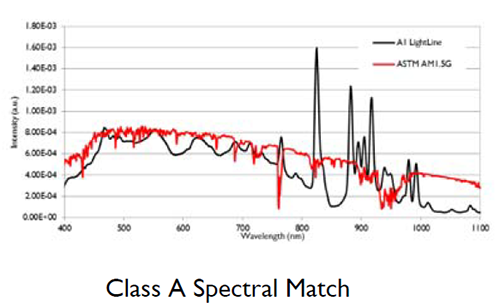

Solar LightLine可以符合ASTM，IEC和JIS A類太陽光模擬器標準。 Solar LightLine提供許多空氣質量過濾器，使您能夠根據需要自定義儀器。除了光譜匹配濾鏡之外，您還可以添加強度濾鏡和其他光譜濾鏡，例如UV和IR阻擋濾鏡。
功能應用

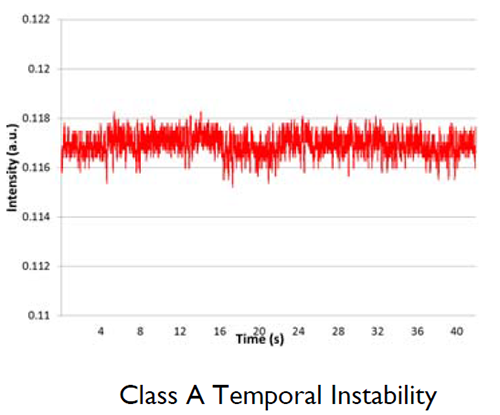

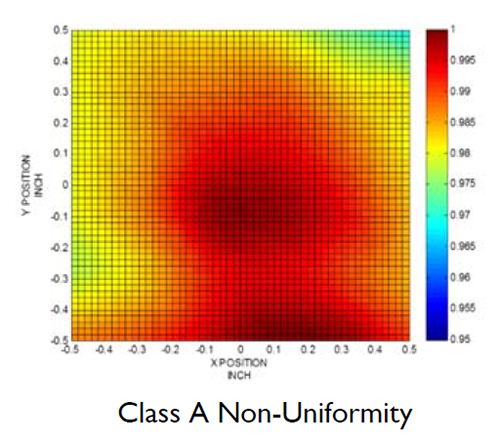

? 符合AAA ASTM標準
? 光纖輸出，照明靈活。
? 易于使用的觸摸屏控件
? 可用光強度控制
? PC遠程控制
? 研究人員具有成本效益
應用領域
? 測試光伏電池性能
? 光化學
? 光生物學
? 測試油漆和織物等的褪色。
| Model | Power operation | Target Size | Sun Level1 | Working Distance2 | Class3 | Projection Optics |
| A4-LA125 | 120/220VAC | 25mm x 25mm | Up to 4 Suns | 125 to 175 mm | AAA | 0 |
| A4-LA200 | 120/220VAC | 50mm x 50mm | 1 Sun | 225 to 300 mm | AAA | 0 |
| A4-C250 | 120/220VAC | Ø12.5mm | Up to 12 Suns | 125 to 175 mm | ACA | 0 |
| A1-LA125 | 120/220VAC | 25mm x 25mm | 1 Sun | 125 to 175 mm | AAA | 0 |
| A1-C250 | 120/220VAC | Ø12.5mm | 4 Suns | 125 to 175 mm | ACA | 0 |
| AX-LA125 | 120/220VAC | 20x20 mm | Up to 3 Suns | 125 to 175 mm | AAA | 0 |
| AX-LA200 | 120/220VAC | 46x46 mm | 1 Sun | 225 to 300 mm | AAA | 0 |
| CX-C250 | 120/220VAC | Ø12.5mm | 9 Suns | 125 to 175 mm | ACA | 0 |
1、With AM1.5G filter installed
2、Working distance can be customized with different optics but will change target size
3、Tested to ASTM E927-05 standards, other standard testing is available upon request
2.規格
| MODEL | A1-LA125 | A1-C250 |
| ASTM Classification | AAA | ACA |
| Target Size | 25mm x 25mm | Ø12.5mm |
| Sun Level | 1 Sun | 4 Suns |
| Working Distance | 125 to 175 mm | 125 to 175 mm |
| Wavelength Range | 350 - 1800nm (Standard Spectral Match 400 - 1100nm) | |
| Air Mass Filter | AM1.0D, AM1.5G, AM1.5D, AM2.0 | |
| Collimation Angle | 10° Half Angle (depends on selected optics) | |
| Lamp | 300W Xenon, 1000h (average) Lifetime, Forced Air Cooling | |
| Shutter | Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle | |
| Fiber Bundle Length | 1.22m (4’) Standard | |
| Power Supply Model | 601-300 | |
| Input Voltage/Current | Switchable110-130V / 3A or 220-240V / 1.** Operation | |
| Environment | Temperature 10-35 oC, Humidity 20-80%, Avoid Condensation | |
| Dimension (LxWxH) | 58.7cm x 20.6cm x 20.8cm | |
| Weight | 5kg | |
| MODEL | AX-LA125 | AX-LA200 | CX-C250 |
| ASTM Classification | AAA | AAA | ACA |
| Target Size | 20x20 mm1 | 46x46 mm1 | 12.5x12.5mm |
| Sun Level | 3 Suns | 1 Sun | 9 Suns |
| Working Distance | 125-175 mm | 225-300 mm | 125-175 mm |
| Wavelength Range | 350 - 1800nm (Standard Spectral Match 400 - 1100nm) | ||
| Air Mass Filter | AM1.0D, AM1.5G, AM1.5D, AM2.0 | ||
| Collimation Angle | 10° Half Angle (depends on selected optics) | ||
| Lamp | 300W Xenon, 1000h (average) Lifetime, Forced Air Cooling | ||
| Shutter | Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle | ||
| Fiber Bundle Length | 1.22m (4’) Standard | ||
| Power Supply Model | 601-300 | ||
| Input Voltage/Current | 110-130V / 3A or 220-240V / 1.** | ||
| Environment | Temperature 10-35 oC , Humidity 20-80% , Avoid Condensation | ||
| Dimension (LxWxH) | 76.8cm x 21.6cm x 38.3cm | ||
| Weight | 20kg | ||
1 Up to 25% larger classified uniform areas available at Class B and C ASTM non-uniformity.
| MODEL | A4-LA125 | A4-LA200 | A4-C250 |
| AST Classification | AAA | AAA | ACA |
| Target Size | 25mm x 25mm | 50mm x 50mm | Ø12.5mm |
| Sun Level | Up to 4 Suns | 1 Sun | Up to 12 Suns |
| Working Distance | 125 to 175 mm | 225 to 300 mm | 125 to 175 mm |
| Wavelength Range | 350 - 1800nm (Standard Spectral Match 400 - 1100nm) | ||
| Air Mass Filter | AM1.0D, AM1.5G, AM1.5D, AM2.0 | ||
| Collimation Angle | 10° Half Angle (depends on selected optics) | ||
| Lamp | 1000W Xenon, 1000h (average) Lifetime, Forced Air Cooling | ||
| Shutter | Integrated Touchscreen Control, 0 - 10000s, Adjustable Duty Cycle | ||
| Fiber Bundle Length | 1.22m (4’) Standard | ||
| Power Supply Model | 611-1k | ||
| Input Voltage/Current | 110-130V / 9A or 220-240V / 6A | ||
| Environment | Temperature 10-35 oC , Humidity 20-80% , Avoid Condensation | ||
| Dimension (LxWxH) | 76.8cm x 21.6cm x 38.3cm | ||
| Weight | 20kg | ||
3.配件
觸摸屏電源
| MODEL (Default) | DESCRIPTION |
| Shutter and Exposure Controller | This feature provides an onboard shutter and exposure controller built into the power supply. A standard 2-pin connector is provided on the back of the power supply to connect a Sciencetech solenoid driven shutter mechanism. With this option the power supply firmware provides an interface for programming shutter loops and exposure sequences. |
| Power Connection for Cooling Fans | The power connection for cooling fans feature provides a power pass through connection for the lamp house cooling fans. With this option the lamp housing cooling fans operation is monitored by the lamp house. |
| Safety Interlock | With the safety interlock feature the power supply will turn off, extinguishing the lamp, if the interlock is opened. The interlock wiring can be connected to a mechanical safety interlock such as a magnetic switch or rocker switch on the lamp house. |
| RS232 Computer Control | This feature provides RS232 computer control of the power supply through a DB9 connector mounted on the rear panel of the power supply (Power control 1.1 software and cable are included). |
| MODEL (Default) | DESCRIPTION |
| Programmable Remote Temperature Monitor/TM | The programmable remote temperature monitor option provides over temperature protection for the lamp house that the power supply is being used with. With this option an RTD or K-type Thermocouple is wired between the lamp house and power supply. |
| Monitor Output/OC | This option provides a male nine pin connector on the rear of the power supply for monitoring the status of the power supply. Parameters that can be monitored: lamp current 0-10V, lamp voltage 0-10V, lamp On/Off (1-5V TTL). |
| Auto Start Lamp/AS | The option provides the capability to automatically start the lamp. This allows the user to set a time for the light source to automatically ignite. |
濾光片
Sciencetech Solar LightLine提供許多過濾選項。 標準的Solar LightLine帶有兩個濾光片插槽。通常為空氣質量過濾器保留一個插槽。輔助插槽可以容納其他過濾選項。
| MODEL | Code | DESCRIPTION | |
| FT-75-3 | 100-8035 | Empty FT Style Filter Holder for 75mm Square or Diameter Filters (3mm thick) | |
| MF-34-FT-3 | 640-9005 | 75mm Mesh 34% Neutral Density Filter with Holder | |
| MF-49-FT-3 | 640-9006 | 75mm Mesh 49% Neutral Density Filter with Holder | |
| MF-71-FT-3 | 640-9007 | 75mm Mesh 71% Neutral Density Filter with Holder | |
| HPF-BB-NIR-FT-3 | 640-9012 | Passes UVA, UVB, and VIS (280-730nm). Blocks NIR (730-1100nm). | |
| HPF-LP-VIS-FT-3 | 640-9014 | Passes VIS and NIR. Blocks UVA and UVB (<400nm). | |
| HPF-LP-NIR-FT-3 | 640-9015 | Passes NIR (700-2000 nm). Blocks UVA, UVB, and VIS (<700 nm). | |
| HPF-BB-VIS-FT-3 | 640-9016 | Passes UVA and UVB (245-400nm). Blocks VIS (400-700nm). | |
| HPF-LP-UVA-FT-3 | 640-9017 | Passes UVA,VIS, and NIR. Blocks UVB (<320nm) | |
| HPF-BB-UVB-FT-3 | 640-9018 | Passes UVB, VIS, and NIR. Blocks UVA (320-400nm) | |
| HPF-BP-VIS-FT-3 | 640-9019 | Passes VIS (400-700nm). Blocks UVA, UVB, and NIR. | |
| MF-25 | 640-9013 | Set of 25mm Diameter Wire Mesh Filters to Attenuate Solar Level. | For use with the –SFW option. |
| AM1.0D-FT-3 | 160-8022 | Air Mass AM1.0D (Standard Range) | |
| AM1.5G-FT-3 | 160-8024 | Air Mass AM1.5G (Standard Range) | |
| AM1.5D-FT-3 | 160-8026 | Air Mass AM1.5D (Standard Range) | |
| AM2.0D-FT-3 | 160-8028 | Air Mass AM2.0D (Standard Range) | |
| WF-1Q | 100-8048 | Compact IR Water Filter | |
可選配件
| MODEL | PART No. | DESCRIPTION |
| SC-12 | 130-9011 | A general-purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12 includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs, including electrical, liquid and gas. |
| -PM90 | 100-8060 | A stand/fiber holder designed to hold the LightLine optical illumination delivery fiber. Fiber holder position is adjustable for vertical and horizontal illumination and any angle in-between. Includes a sturdy baseplate. |
| FB-0.5-8 | 670-0103 | 8 foot optical fiber upgrade to allow for further versatility with the A1, AX/CX and A4 LightLine. Please note that there will be a reduction in the power output with an 8 foot fiber. |
| -SFW | 189-9012 | 6-position computer controlled filter wheel (25 mm diameter filters) |
| (UV-Glasses-Drk) | 720-0159 | Dark safety glasses |
