名稱： 聚光脈沖太陽光模擬器
型號： FSSC
品牌： 努美科技/Sciencetech
太陽光模擬器特征
? AAA級太陽能模擬器
? 強度等級高達4000太陽
? <2％不均勻
? 緊湊的設計
? 燈泡壽命> 10,000次閃爍
太陽光模擬器應用
? 太陽模擬
? 聚光光伏
? 高功率光伏電池（三結電池）的表征
? 加速暴露測試

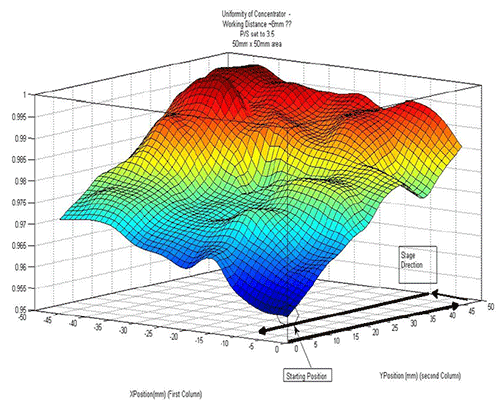

A typical Non-uniformity measurement. Graph is
interpolated from 64 measurements over a
5c mx5cm area. The data indicates a
non-uniformity of 1.87%

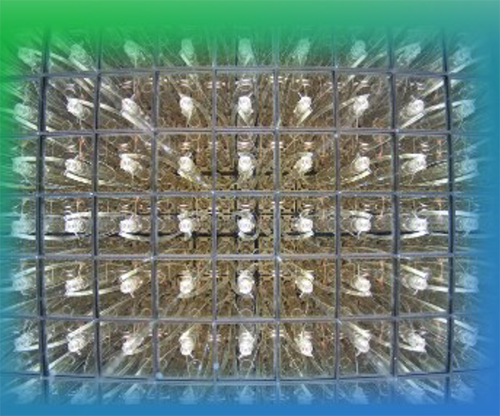

聚光脈沖太陽模擬器（FSSC）是一種緊湊而堅固的光源，可產生非常高的太陽輻照度，并且產生的不均勻性很小。專有的均質化技術使FSSC能夠達到行業**的均勻度和功率水平。
FSSC可用于表征**尺寸為5cm x 5cm的太陽能電池和其他設備。可以通過功率控制在225到4000個太陽之間的50個步長中設置誤差。

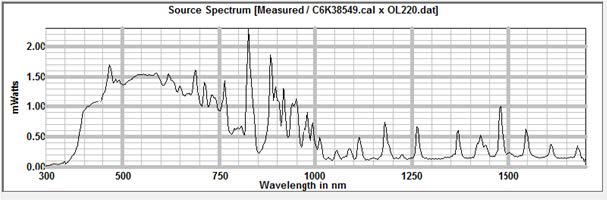

使用FSSC太陽能濾光片，該裝置符合AM1.5D ASTM光譜標準。
| Wavelength Band (nm) | FSSC Measure- ment (%, with AM1.5D Filter) | Air Mass 1.5D ideal spectral match (%) |
| 400-500 | 15.1 | 14.2 |
| 500-600 | 18.0 | 16.4 |
| 600-700 | 16.1 | 15.4 |
| 700-800 | 11.7 | 12.7 |
| 800-900 | 10.9 | 10.7 |
| 900-1100 | 11.5 | 13.9 |
太陽光模擬器規格
| Model | FSSC |
| Illumination Intensity | From 225 to 4000 suns (lower concentration levels possible with ND filtering) |
| Illumination Intensity Reference | Built into homogenizer, 5.377uA/Sun 11.0mA typical @2000 Suns |
| Target Area | 5cm x 5cm |
| Angle of Exit | 50 % within 30 degrees, 47.5 degrees maximum angle |
| Non-Uniformity of Irradiance | <2% typical |
| Working Distance | From 1 to 7 mm (3mm typical) |
| Spectral Match | Class A AM1.5D typical |
| Spectral Adjustability | From AM1.0 to AM2.0 with different filters |
| Flash Duration | 1mSec around peak (90% points), 2.2mSec at 50% points t |
| Minimum # of flashes per lamp | 20,000 flashes typical @2000 suns , 100,000 flashes @ 400 suns * |
| Flash to Flash Repeatability | +/- 5%, +/- 3% typical ** |
| Flash Interval | 5 seconds typical , 2 seconds minimum |
| Energy Setting | 75-2400 Joules (50 steps) |
| Dimensions (cm) | 36 x 36 x 78 |
| Dimensions including mounting frame (cm) | 61 x 61 x 82 |
T Flash duration can be widened and profile flattened with appropriate power supply, peak power level will be reduced.
* Higher power settings can degrade lamp life more quickly
** flash to flash repeatability can be reduced below 2% with power supply modification
