名稱： 全反射太陽光模擬器
型號： SS系列
品牌： 努美科技/Sciencetech
制造了四個高功率版本的AAA級全反射太陽光模擬器。
專有的全反射設計使用鍍金屬的鏡面，并能使整個光譜通過，而毫不妥協。與基于折射的系統相比，
這是明顯的優勢，基于折射的系統受到所使用的透明材料的特性的限制。
特征
? AAA級太陽光模擬器
? 氙氣短弧燈
? 全反射光學系統
? 無色差
? 各種可用的過濾器
? 模塊化設計
? 許多可選組件
應用領域
? 光伏測試
? 暴露測試
? 輕度漂白
? 高紫外線測試
不均勻性
| Part No. | Model No. | Class ATarget Diameters (cm)* | Class BTarget Diameters (cm) | ||||
| 1 Sun | 0.5 Sun | 2 Sun | 1 Sun | 0.5 Sun | 2 Sun | ||
| 165-9002 | SS0.5kW | 7.5 | 12.4 | 6.3 | 9 | 15 | 7.5 |
| 165-9001 | SS1kW | 12.7 | 18 | 8.9 | 15 | 21.5 | 10.5 |
| 165-9007 | SS1.6kW | 16 | 22.6 | 11.2 | 20 | 27 | 13.5 |
| 165-9008 | SS2.5kW | 20.3 | 28.7 | 14.2 | 24 | 34 | 17 |
*Target diameters are specified for AM1.5G SUNS, for other power levels the maximum achievable target size will be different.
光譜匹配
| Range (nm) | ASTM AM 1.5G | Sciencetech FRSS AM 1.5G | ASTM AM 0 | Sciencetech FRSS AM 0 | < + 25% of Standard |
| 300-400 | 8.00% | 7.30% | PASS | ||
| 400-500 | 18.40% | 21.81% | 16.40% | 17.70% | PASS |
| 500-600 | 19.90% | 20.65% | 16.30% | 17.00% | PASS |
| 600-700 | 18.40% | 17.81% | 13.90% | 14.10% | PASS |
| 700-800 | 14.90% | 13.00% | 11.20% | 10.50% | PASS |
| 800-900 | 12.50% | 11.00% | 9.00% | 9.20% | PASS |
| 900-1100 | 15.90% | 15.73% | 13.10% | 14.00% | PASS |
| 1100-1400 | 12.20% | 10.20% | PASS |
技術規格
| Collimation Angle (± degrees) | 3 |
| Typical Power Output (mW/cm2) (at target ) | 100 |
| Uniformity | <2% |
| Uniformity Classification | A (ASTM E927-05) |
| Temporal Instability | <2% |
| Temporal Instability Classification | A (ASTM E927-05) |
| Spectral Match | See table |
| Spectral Match Classification | A (ASTM E927-05) |
| Working Distance (cm) | Depends on model |
| Lamp Power Requirements | 500-2.5kW |
| Line Regulation Requirement | 0.01% |

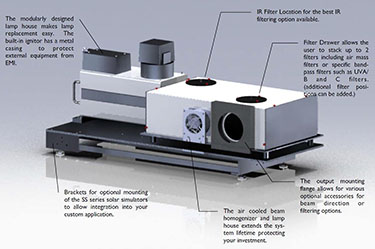

Sciencetech可以根據您的要求配置全反射式太陽模擬器。
均質器可以自定義為包括計算機可控制的百葉窗，或可變焦點選項，使您可以將均勻平面放置在距模擬器輸出不同的工作距離處。
有許多過濾選項可用。 一些濾波器選項通過內置濾波器抽屜添加到光束線上。 其他過濾選項需要增加一個光束轉向過濾器支架。
還提供一系列太陽能電池卡盤，包括真空夾，熱電或水冷卻，微型定位器以及完整的IV測試軟件和硬件等選件。
可以將SS0.5k至SS1.6k型號安裝在垂直支架上，以進行向下操作。 請注意，SS2.5k型號必須安裝在桌子上，以便朝下操作。
配置選項
| Homogenizer Configuration Options | |
| (SSES) High Power Computer Controlled Shutter | 165-8005 |
| (SSVF-SS) Variable Focus | 165-8011 |
| Homogenizer output window (G1 Quartz) for sealed | Contact |
| homogenizer option | |
| Homogenizer output window (Si-UV) for sealed ho- | Contact |
| mogenizer option | |
| Output Flange Options | |
| (CTBT-SS) Beam turning mirror | 165-8018 |
| (CTBT-RF) Dichroic beam turning assembly | 165-8034 |
| Body Options | |
| (BASE-SS) Base assembly for vertical stand | 165-8030 |
| (BASE-SS-ROLL) Solar simulator base assembly with casters | 165-8048 |
| Sample Tray Options | |
| (SAMP-STD) Standard solar simulator and clamp assemblysample plate | 165-9006 |
| A range of solar cell chucks and sample holding accessories are availablecooling and | Browse chucks |
| Complete Package Options | |
| (DFS-SS) Downward facing stand package SS0.5-1.6k simulators. (Includes CTBT-SS,BASE-SS and SAMP-STD).for | 160-8016 |
| (DFS-2.5SS) Downward facing stand package for SS2.5k. | 165-8050 |
濾鏡選項
每個Sciencetech全反射太陽能模擬器都包括一個FH-SS過濾器托盤。 FH-SS過濾器托盤**多可容納2個過濾器，并位于模擬器光束均化器中。 通過將產品（FH-SS-ADD）添加到您的訂單中，可以增加兩個過濾器插槽。
| Item Number | Description |
| Filter Holder | |
| FT-75-3 | 3" filter holder for SS style filters, 2.5mm thick max |
| Spectral Filters • near 0 degree incidence • 3M diameter, mounted in FT filter mount | |
| MF-34-FT-3 | 75mm Mesh 34% Neutral Density Filter with Holder |
| MF-49-FT-3 | 75mm Mesh 49% Neutral Density Filter with Holder |
| MF-71-FT-3 | 75mm Mesh 71% Neutral Density Filter with Holder |
| HPF-BB-NIR-FT-3 | Hot Mirror for UV Applications |
| HPF-LP-VIS-FT-3 | Visible longpass filter |
| HPF-LP-NIR-FT-B | Infrared longpass filter |
| HPF-BB-VIS-FT-3 | Visible blocking filter |
| HPF-LP-UVA-FT-3 | UVA longpass filter |
| HPF-BB-UVB-FT-3 | UVB band blocking filter |
| HPF-BP-VIS-FT-3 | Visible bandpass filter, 0 Dee |
| HPF-LP-420-FT-3 | 420nm longpass filter |
| Air mass filters - near 0 degree incidence | |
| AMO-FT-3 | Air Mass AMO Filter for SS Series Solar (Standard Range)* |
| AM1.0D-FT-3 | Air Mass AM1.0D Filter for SS Series Solar (Standard Range) |
| AM1.5G-FT-3 | Air Mass AM1.5G Filter for SS Series Solar (Standard Range) |
| AM1.5D-FT-3 | Air Mass AM1.5D Filter for SS Series Solar [Standard Range) |
| AM2.0D-FT-3 | Air Mass AM2.0D Filter for 5S Series Solar (Standard Range) |
| *Using AMO filter reduces the target size achievable for 1 sun class A | |
| Homogenizer IR Water filter | |
| 100-8018 | IR Watftr Filter, 3U Stainless Fusftd SHica Windows |
| beam turning filters - 45 degree - used with CT6T*RF | |
| 640-8004 | Pass VIS, Block UVJR - CTBT option |
| 640-8008 | Pass IR, Block UV Block VIS |
| 640-8011 | Payy UVA+B, Bk V1S+IR - CTBT option |
| PPE Accessories | |
| 720-0159 | (UV-Glasses-Drk) Dark safety glasses |
